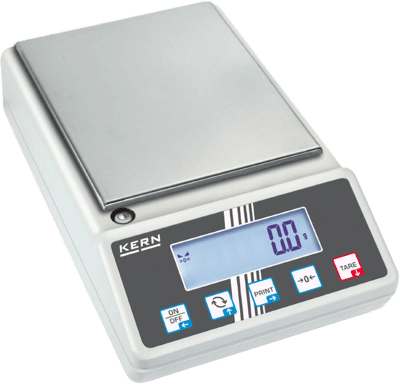

572 & 573 Precision Balance

Brand: Kern
Request Information
Favorite

572-33.png 572-30.png Screenshot 2022-11-16 101356.png
All-rounder, e.g. as precision balance in the laboratory or in harsh industrial applications, ideal for the diverse possibilities of Industry 4.0 applications.
Features
  • Thanks to the many typical laboratory functions, such as, for example, recipe function, percentage determination, combined with the high level of precision, the KERN 572 is a reliable partner for day-to-day work in the laboratory
  • The robust version, typical industrial functions, such as piece-counting, vibration-free weighing and the large weighing ranges also make these balances ideal for all industrial applications, where a high level of precision is required
  • KERN Universal Port (KUP): permits the connection of an external KUP interface adapter, such as, for example, RS 232 or USB, for the exchange of data and control commands, without any installation outlay
  • KERN Communication Protocol (KCP): The KCP permits searching and remote control of the balance using external control devices or computers
  • Standardized, simplified concept of operation
  • Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m2, or similar
  • The robust Aluminum diecast housing maintains the stability, protects the weighing technology elements and is robust enough to cope with everyday use
  • Ring-shaped draft shield standard for models with weighing plate size 106 mm, weighing space Ø×H 157×43 mm
  • level indicator and foot screws standard
  • Loop for underfloor weighing standard on all models with readout [d] = 0,001 g
  • Protective working cover included with delivery

View Details

Specifications

Brand

Construction

  • Casing Material: Cast Aluminum Alloys
  • Level Indicator: Yes
  • Dimensions Housing (WxDxH): 180 mm x 310 mm x 85 mm
  • Material Weighing Plate: Stainless Steel
  • Overall Dimensions Mounted (WxDxH): 180 mm x 310 mm x 130 mm - 180 mm x 310 mm x 90 mm
  • Revolving Screw Feet: Yes
  • Weighing Space (Ø x H): 157 x 43 mm
  • Weighing Surface (d): 106 mm, 150 mm, 160 x 200 mm

Display

  • Display Digit Height (Large): 21 mm

Power Supply

  • Charging Time: 8 h
  • Operating Time (Backlight On): 24 h
  • Input Voltage: 100-240 Vac 50/60 Hz 0.5A
  • Mains Adapter: Mains Adapter External
  • Mains Adapter/Adapter Included: EURO CH UK US
  • Operating Time: 20 h
  • Operating Time (Backlight Off): 48 h
  • Rechargeable Battery: Optional (Factory)

Functions

  • Counting Function: Yes
  • PRE-TARE Function: Yes
  • Weighing with Tolerance Range: Yes
  • Suspended Weighing: Loop
  • Percentage Determination: Yes
  • Vibration-free Weighing (Animal Weighing Program): Yes

Measuring System

  • Adjustment Options: External Calibration
  • Eccentric Loading at 1/3 [Max.]: 5 mg - 500 mg
  • Linearity: 3 mg - 300 mg
  • Readability [d]: 1 mg - 100 mg
  • Recommended Adjusting Weight: 200 g (F1) - 20 kg (F1/E2)
  • Repeatability: 1 mg - 100 mg
  • Resolution: 160,000 - 420,000
  • Stabilisation Time Under Laboratory Conditions: 2 - 3 s
  • Warm Up Time: 2 h - 4 h
  • Weighing Capacity [Max.]: 240 g - 24 kg
  • Weighing System: Strain Gauge
  • Weighing Units: oz.tffa tl (HK) ct g oz. mo lbdwttl (Singap. Malays) tl(Tw) gn

Environmental Conditions

  • Maximum Humidity: 80 %
  • Maximum Operating Temperature: 40° C
  • Minimum Ambient Temperature: -10° C

Counting

  • Counting Resolution: 160,000 - 420,000
  • Minimum Piece Weight at Piece Counting (Laboratory): 1 mg - 100 mg
  • Minimum Piece Weight at Piece Counting (Normal): 10 mg - 1 g
  • Reference Weight: Yes
